AISI 201 304 316 Small Size Inox Round Square Welded Pipe Support
Customized Stainless Steel Capillary Tube
Product Description:

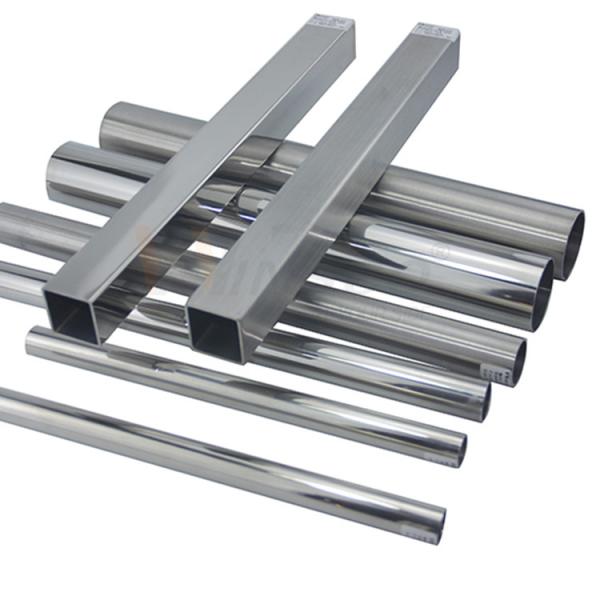

AISI 201 304 316 small size, custom stainless steel capillary tubes
are made from high
quality stainless steel, which is durable and corrosion-resistant.
They have an inner
diameter ranging from 3mm to 19mm and come in a variety of sizes.
They can be
customized to meet the specific needs of the customer. This type of
stainless steel is often
used in medical applications, such as surgical instruments, due to
its superior strength and
corrosion resistance. It can also be used for instrumentation, such
as pressure and
temperature gauges, due to its precise dimensions and superior
performance. The AISI 201
304 316 small size, custom stainless steel capillary tubes are easy
to install and maintain
and can be cut to the desired length.
Product Advantage:
1. Factory direct supply: Winscometal sells directly from the
factory, without middlemen to
make the difference, with complete equipment.
2. Genuine materials with excellent properties: the content of
chromium, nickel and carbon
elements reaches the standard.
3. Quality Assurance: Shipped products have passed precise quality
inspections.
4. The inner wall is smooth and the surface is bright: the surface
is polished, no black lines,
no black spots, no strain, no mechanical lines, no sand holes,
smooth welds, and nitrogen
protection in the inner welds.
5. Strict tube body, excellent workmanship: outer diameter
tolerance ±0.02mm, thickness
tolerance conventional tube ±0.02mm, thickness tolerance ±0.05mm.
6. Complete sizes and various specifications: you can choose from
various specifications
and sizes.
7. Support customization, packaging film: support deep processing,
customized drawings
and samples; packaging can be covered with protective film, woven
bag packaging.
Specifications:
| Description | Tube En Inox;Tig Welded Stainless Steel Capillary Pipe;Stainless
Steel Small Tube;Stainless steel tubes for mechanical and
structural purposes |
SS Small Tube Size (mm) | 3,5,6,8,9,10,12,12.7,14,16,19,10x10,12.7x12.7,15.8x15.8,19x19,Customization. |
| Material Grade | AISI201/AISI301/ SUS304/ AISI316L/ AISI410 |
| Standard | ASTM A554/JIS G3446 /CNS 5802 /EN 10217-7/EN 10296-2,EN 10305-2,
EN 10305-5. |
| Thickness | 0.3mm,0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,1.2mm,1.5mm,
2.0mm,customized. |
| Section Shape | Round Shape,Square Shape. |
| Surface | 2B/8K/Mirror/Satin/HL/Brush |
| Length | 1m,2.5m,3m,5.85m,6m,6.1m,7m,length can be customized. |
| Application | Food machinery, Household appliances, Metal products, Solar power
system, Cooking utensil, Straw, Chopsticks,etc. |
Application:
Stainless steel capillaries are widely used in:
1. Medical equipment industry, injection needle tube, puncture
needle tube, medical
industrial tube.
2. Industrial electric heating pipe, industrial oil pipe.
3. Temperature tube for temperature sensor, tube for sensor, tube
for barbecue, tube for
thermometer, tube for thermostat, tube for instrumentation,
stainless steel tube for thermometer.
4. Various electronic microtubes, optical fiber accessories,
optical mixers, small diameter
stainless steel capillaries.
5. Various antenna tubes, car tail antenna tubes, rod antenna
tubes, stretching pointers,
mobile phone stretching antenna tubes, miniature antenna tubes,
laptop antennas, stainless
steel antennas.
6. Stainless steel tubes for laser engraving equipment.
7. Fishing gear tube, drop fishing rod tube.
8. Various catering industry pipes.
